RoRoLink

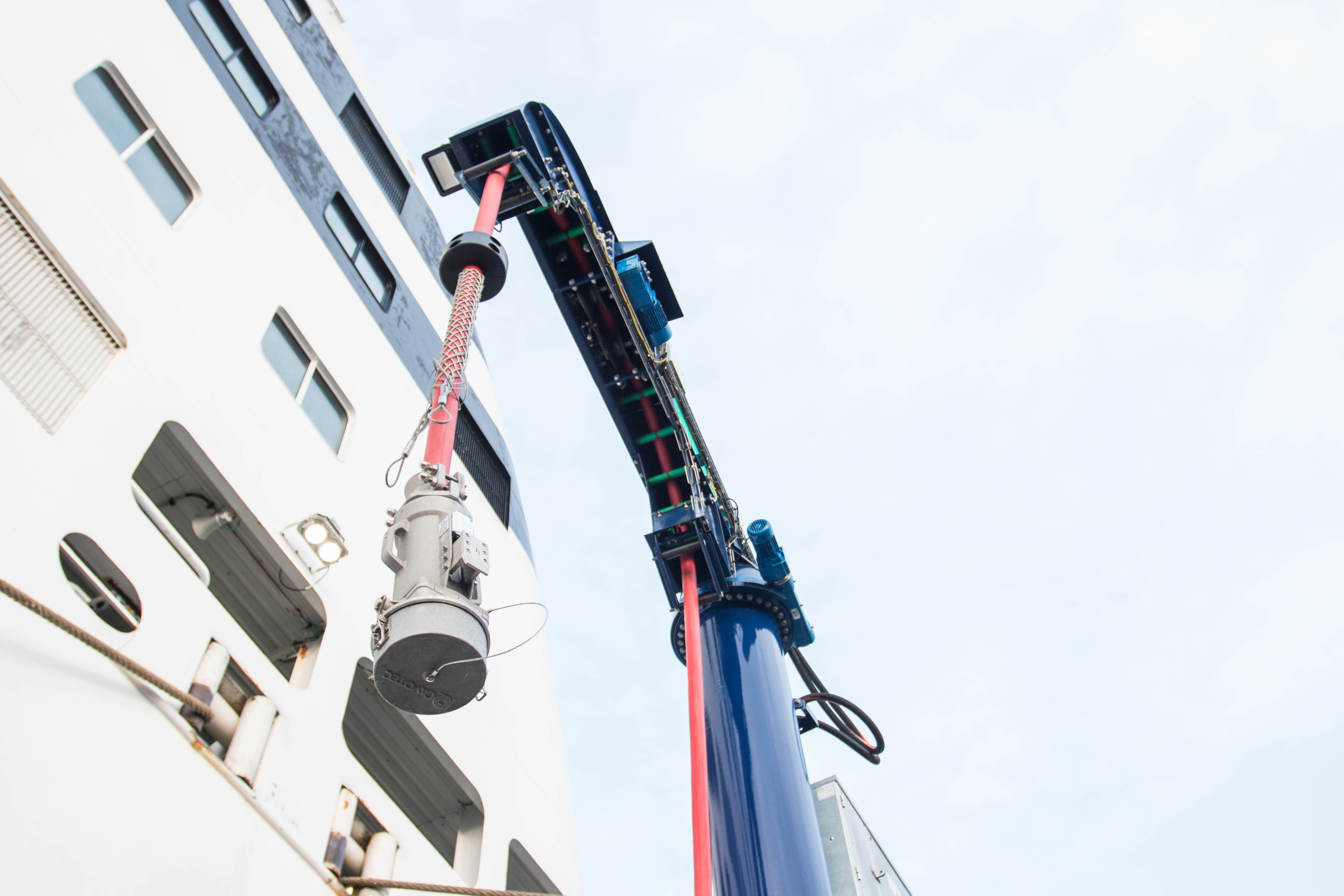

RoRoLink is a fixed or mobile cable management solution designed to deliver fast, safe, and reliable shore power connections for RoRo and RoPax vessels during port calls. For fixed vessel routes, full operation is possible from the vessel alone, eliminating the need for shoreside personnel.

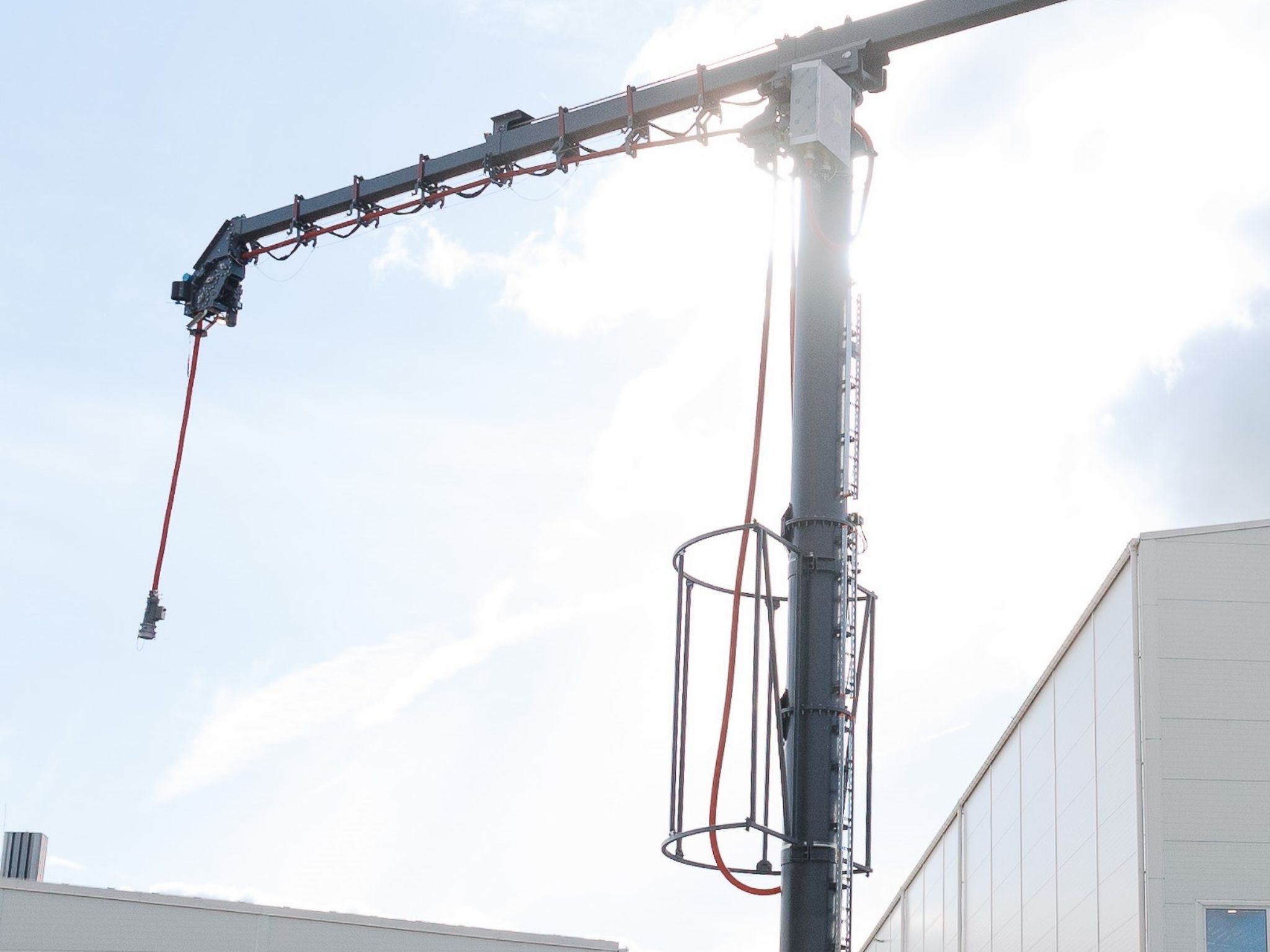

The system features a customizable Cable Management System (CMS), with column and boom dimensions tailored to project requirements. Boom options include fixed-reach (rotating only), telescopic, and longitudinal movement to match hatch location.

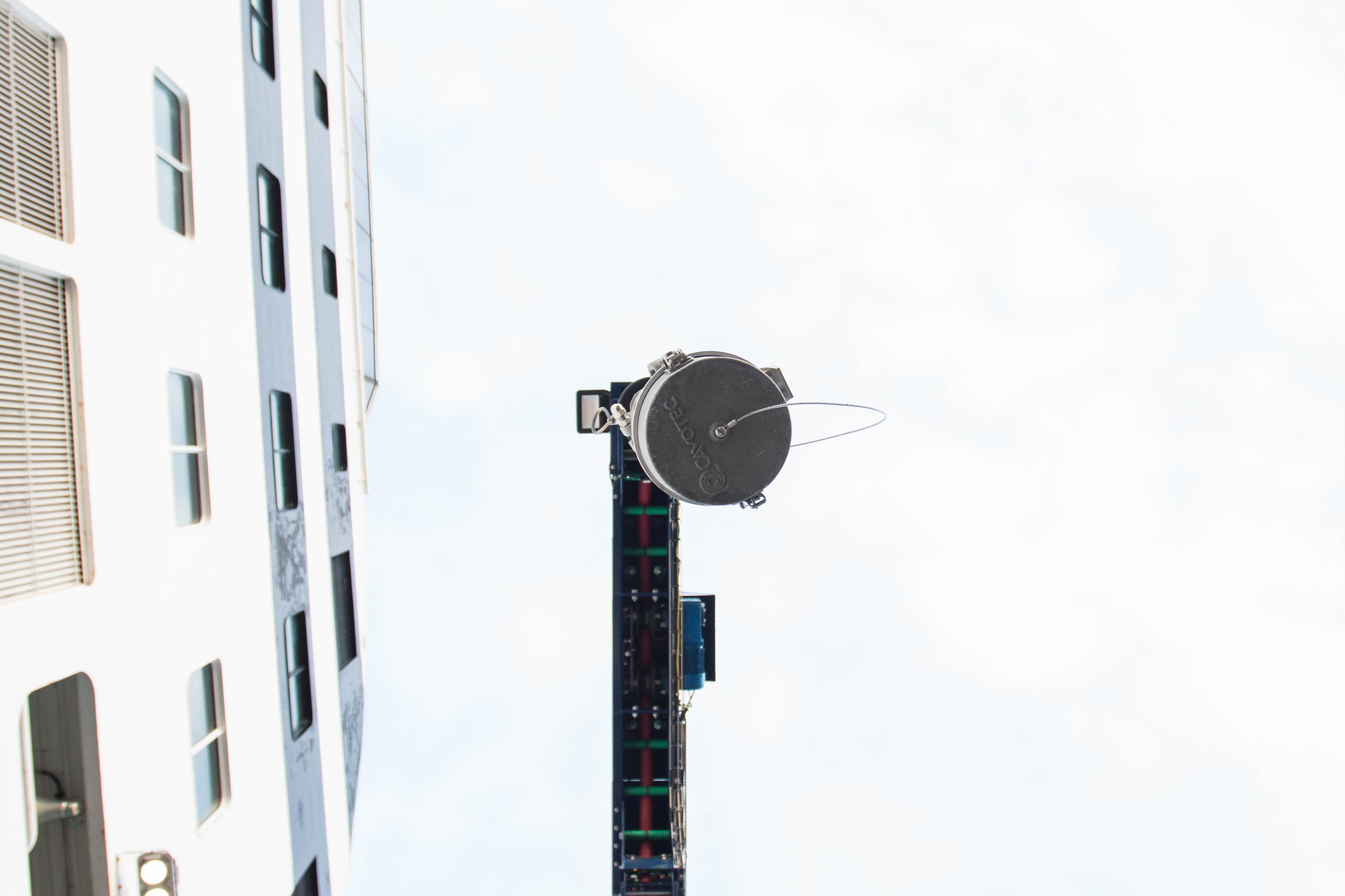

RoRoLink includes an Active Height Compensation System that automatically adjusts to vessel movements, ensuring a stable connection.
Built to withstand harsh marine environments.
Fully compliant with the latest IEC 80005 shore power standards.
Low voltage
400VAC / 440VAC / 690VAC
Medium voltage
6.6 / 11 kV
Fully radio-controlled
AC/DC
50/60Hz
-25 C to +40 C
Different CONDITIONS OPTIONALLY
Boom types

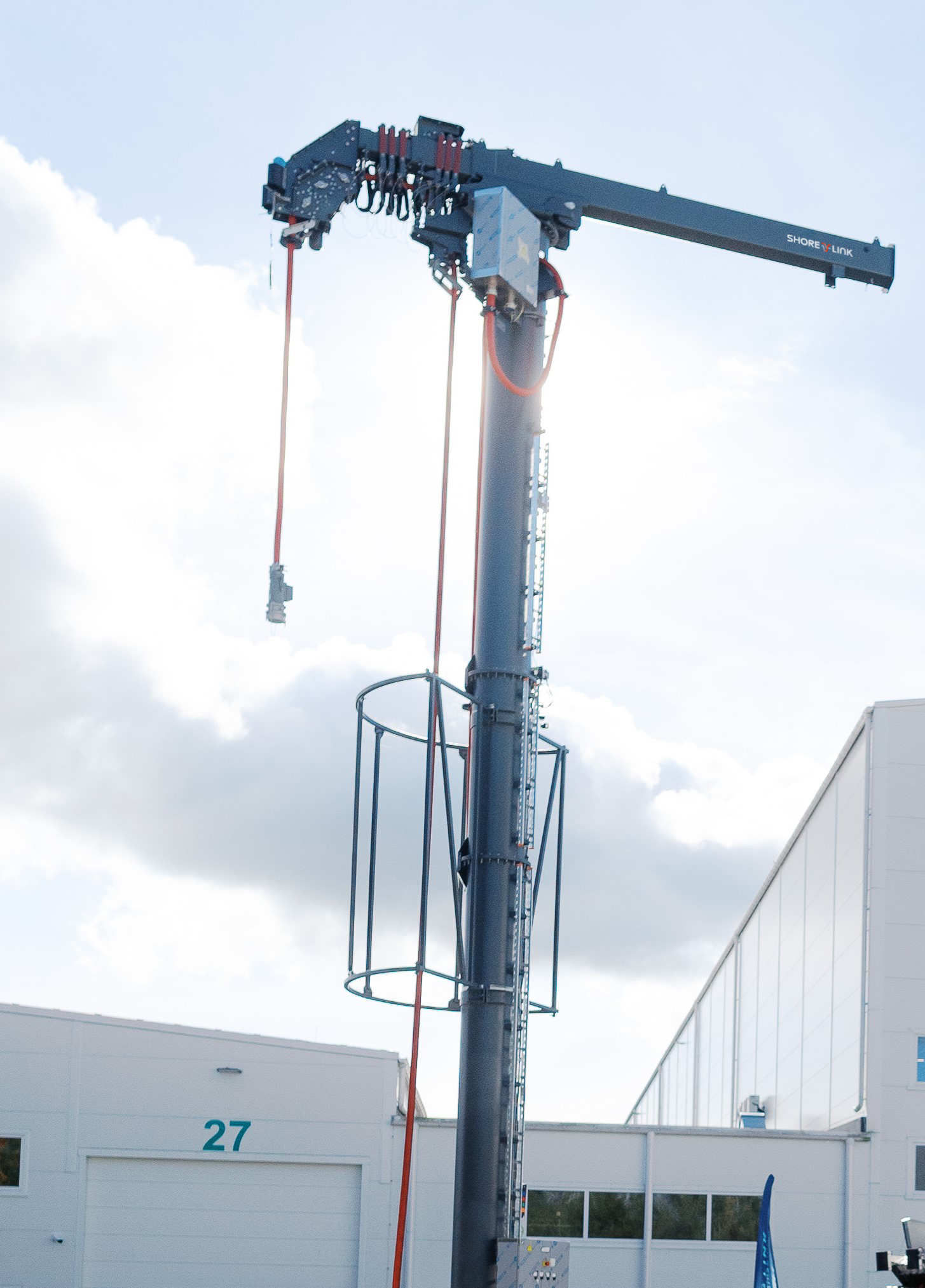

Fixed

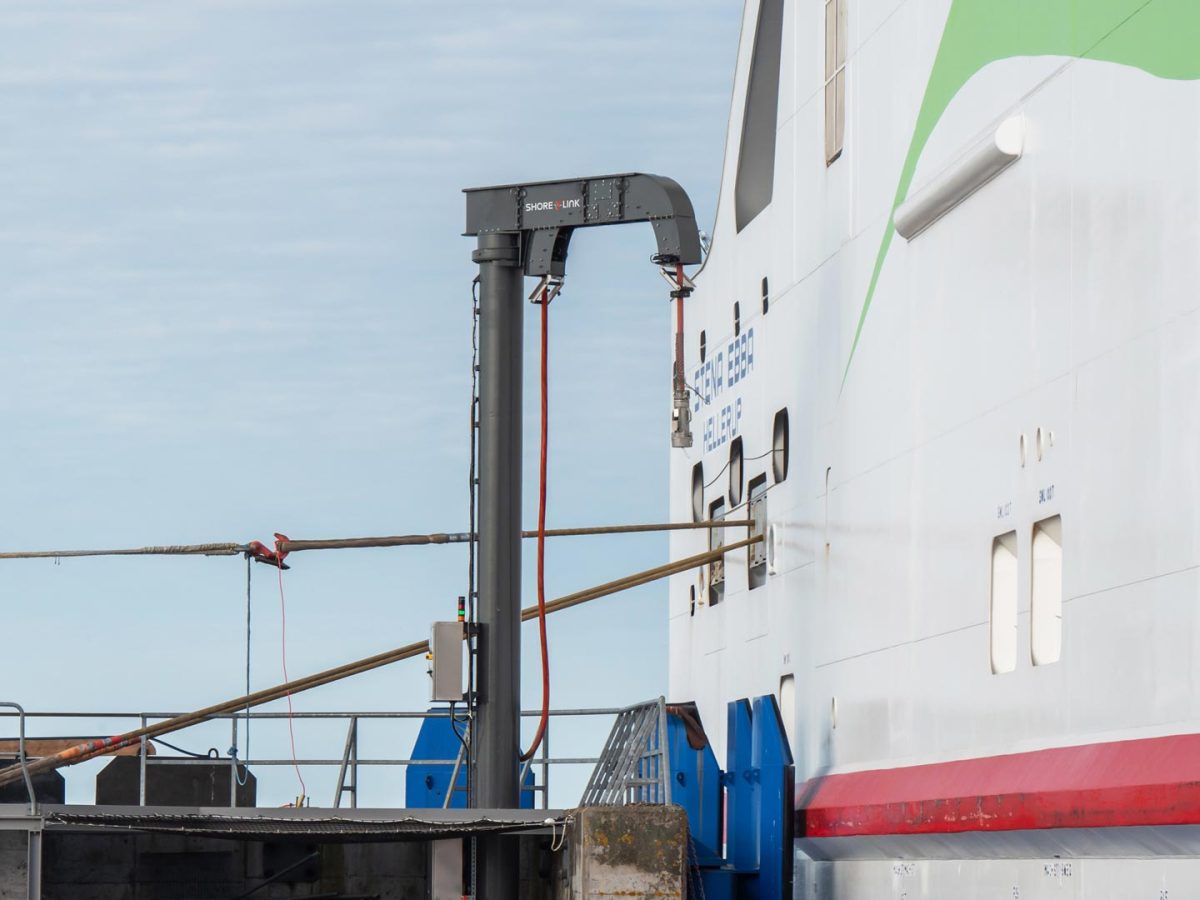

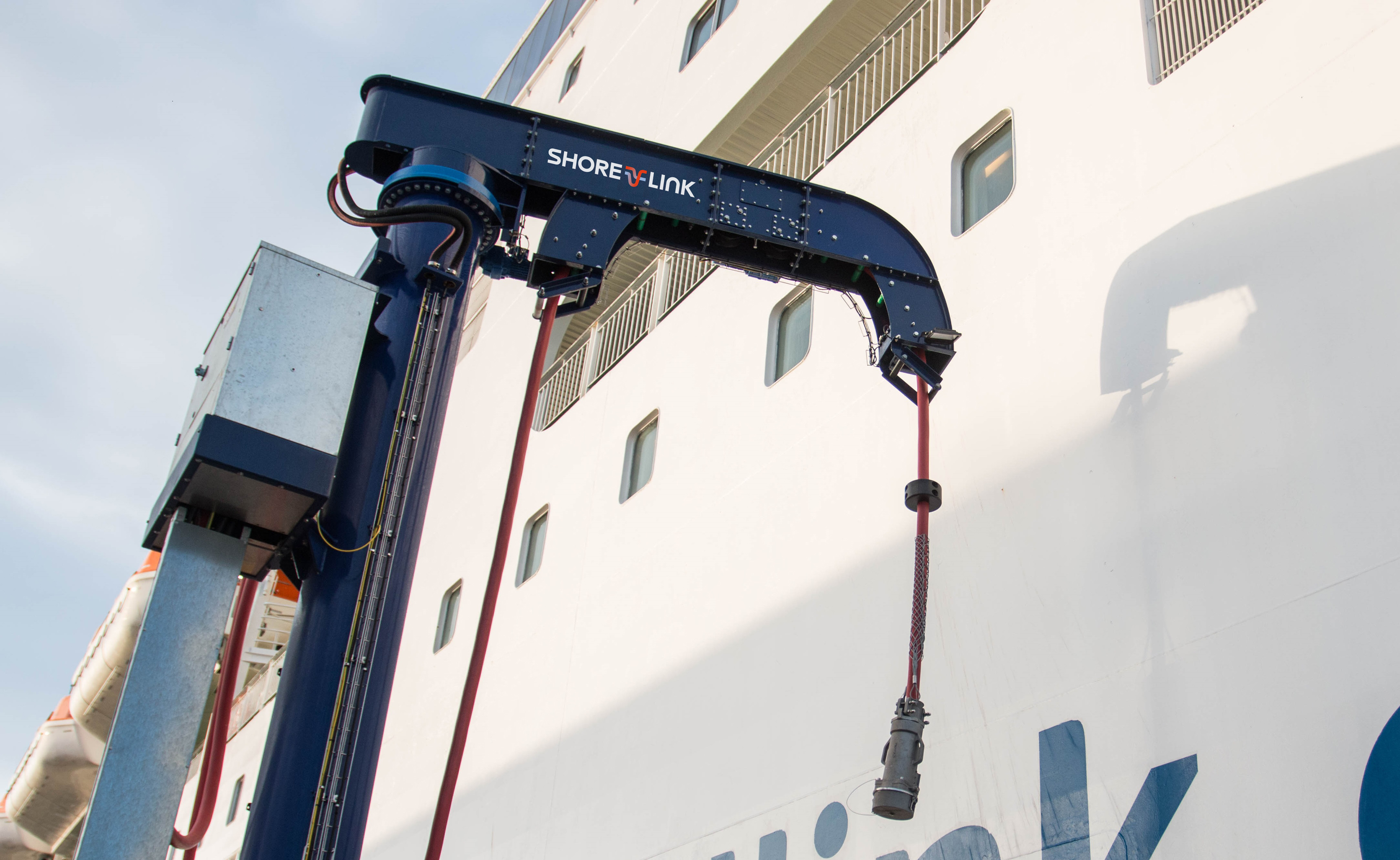

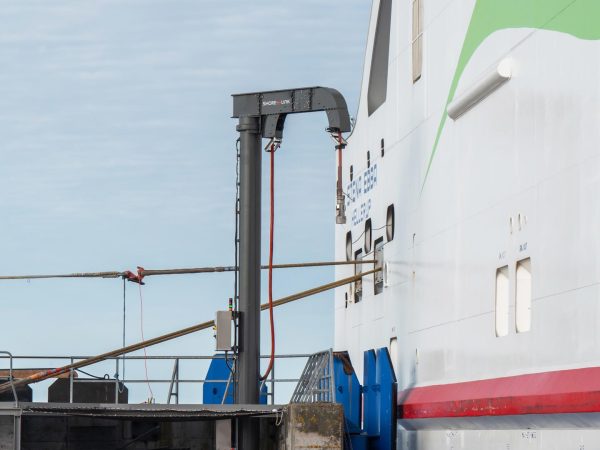

Fixed boom rotates only toward the vessel hatch.

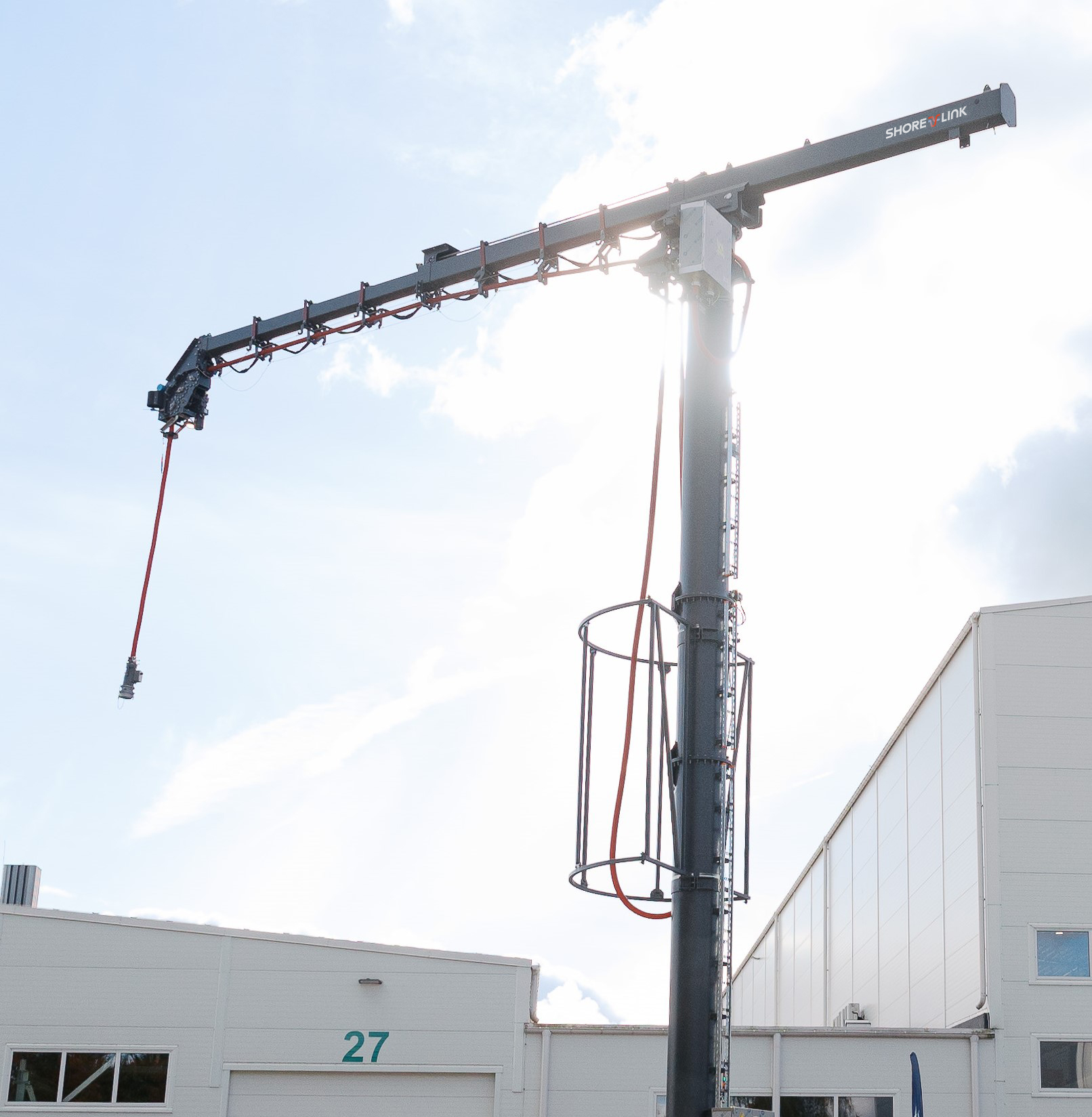

Telescopic

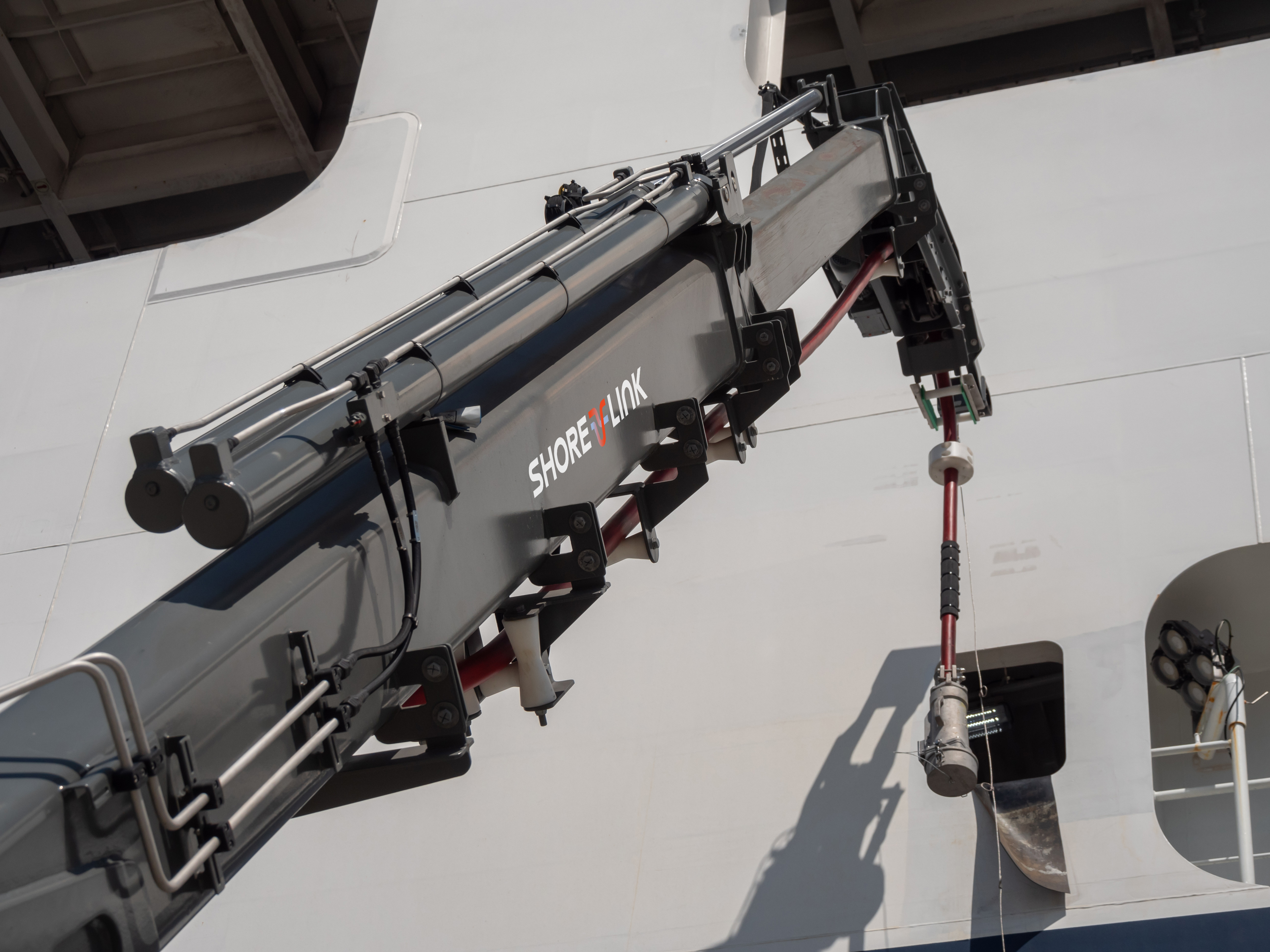

Boom extends and retracts to increase working range.
Reach

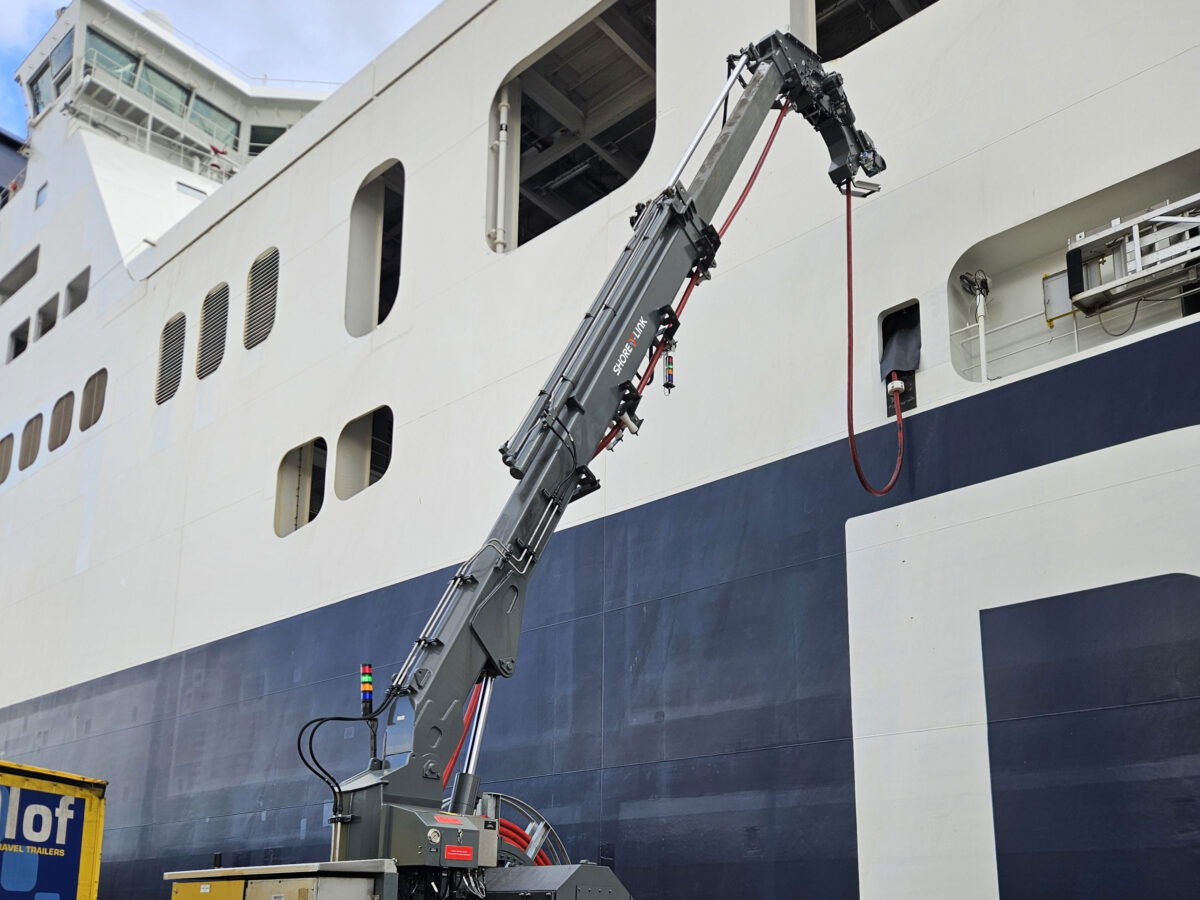

Boom moves horizontally and vertically, providing added flexibility.
Installation options

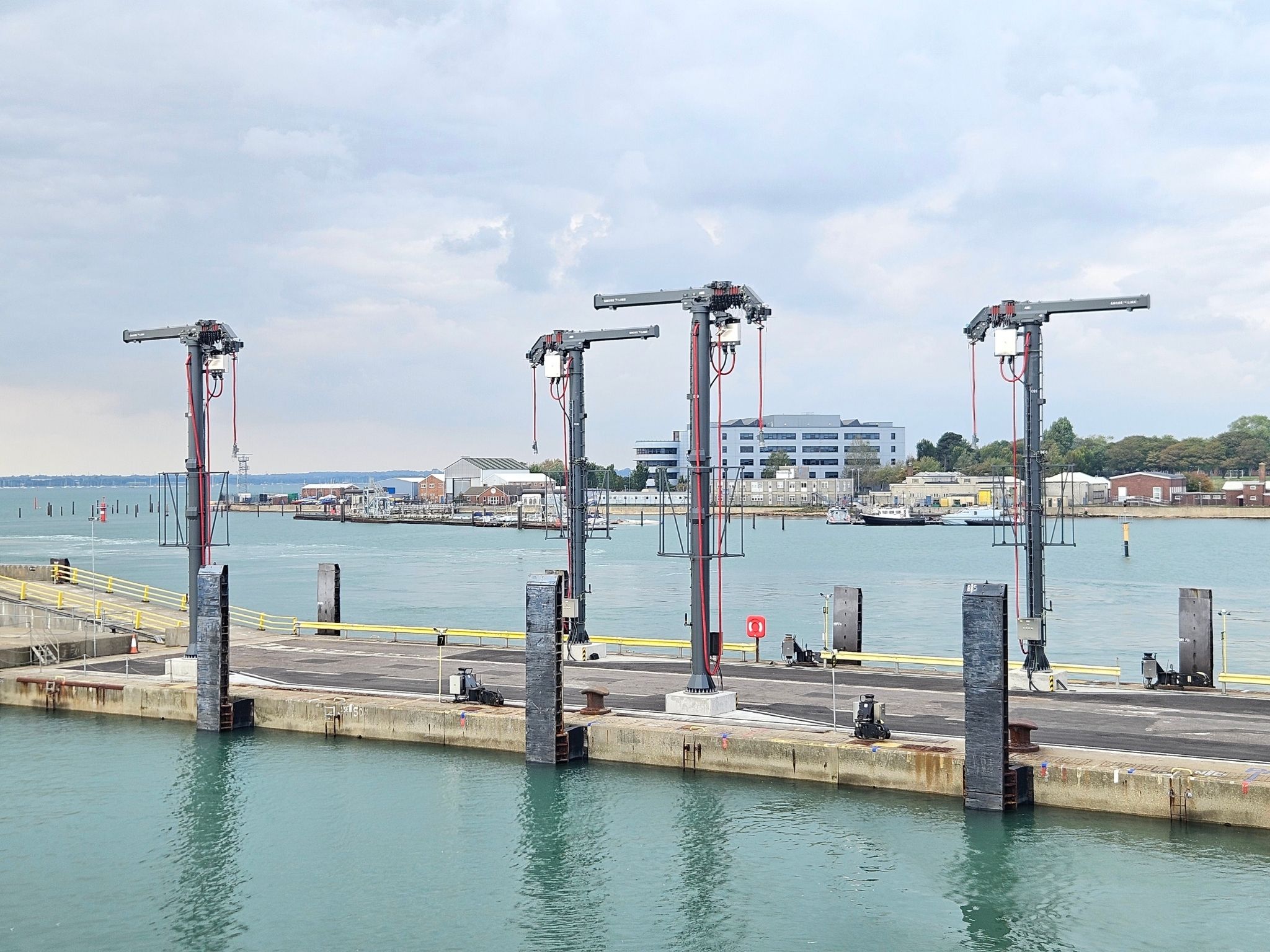

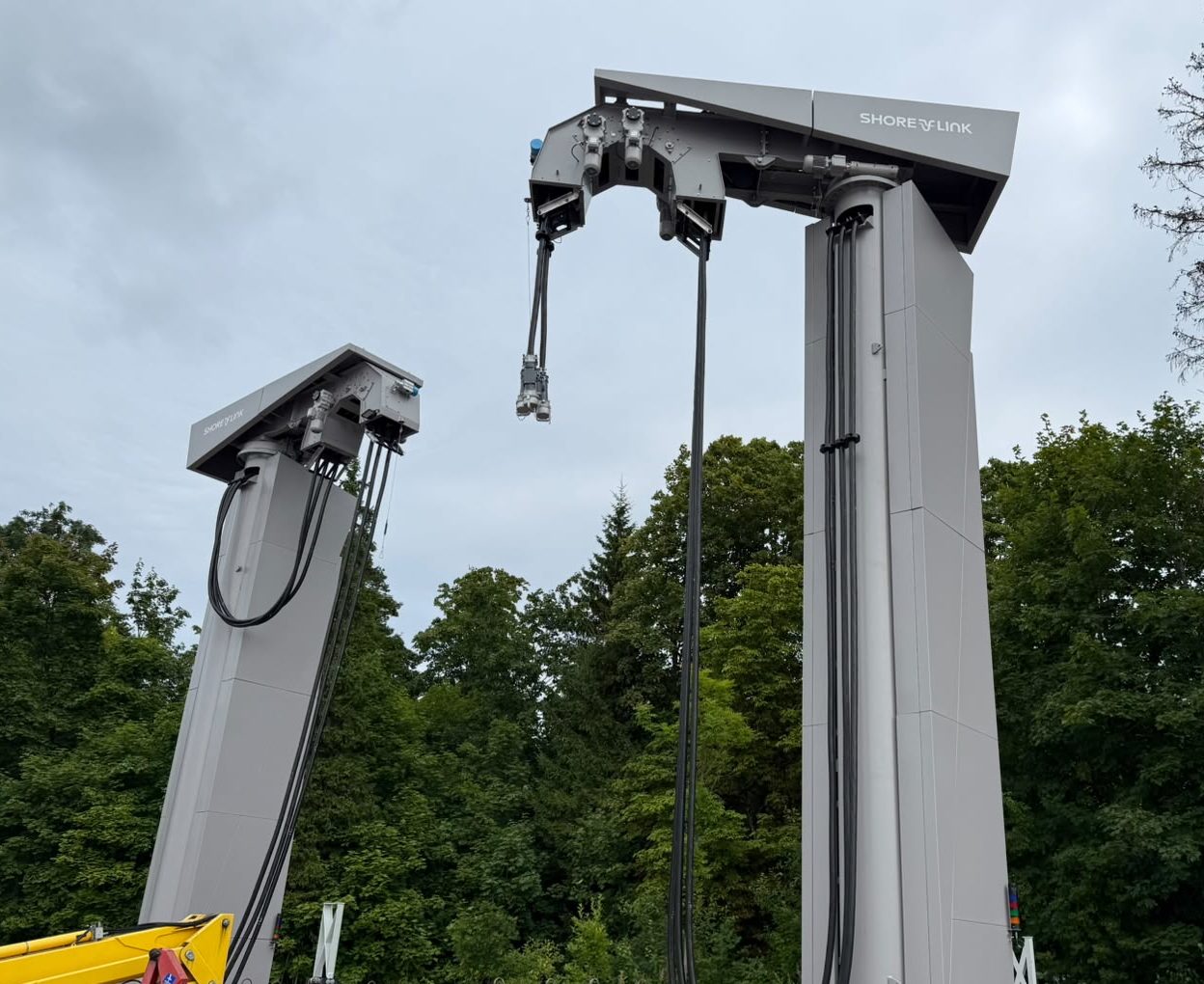

Fixed installation

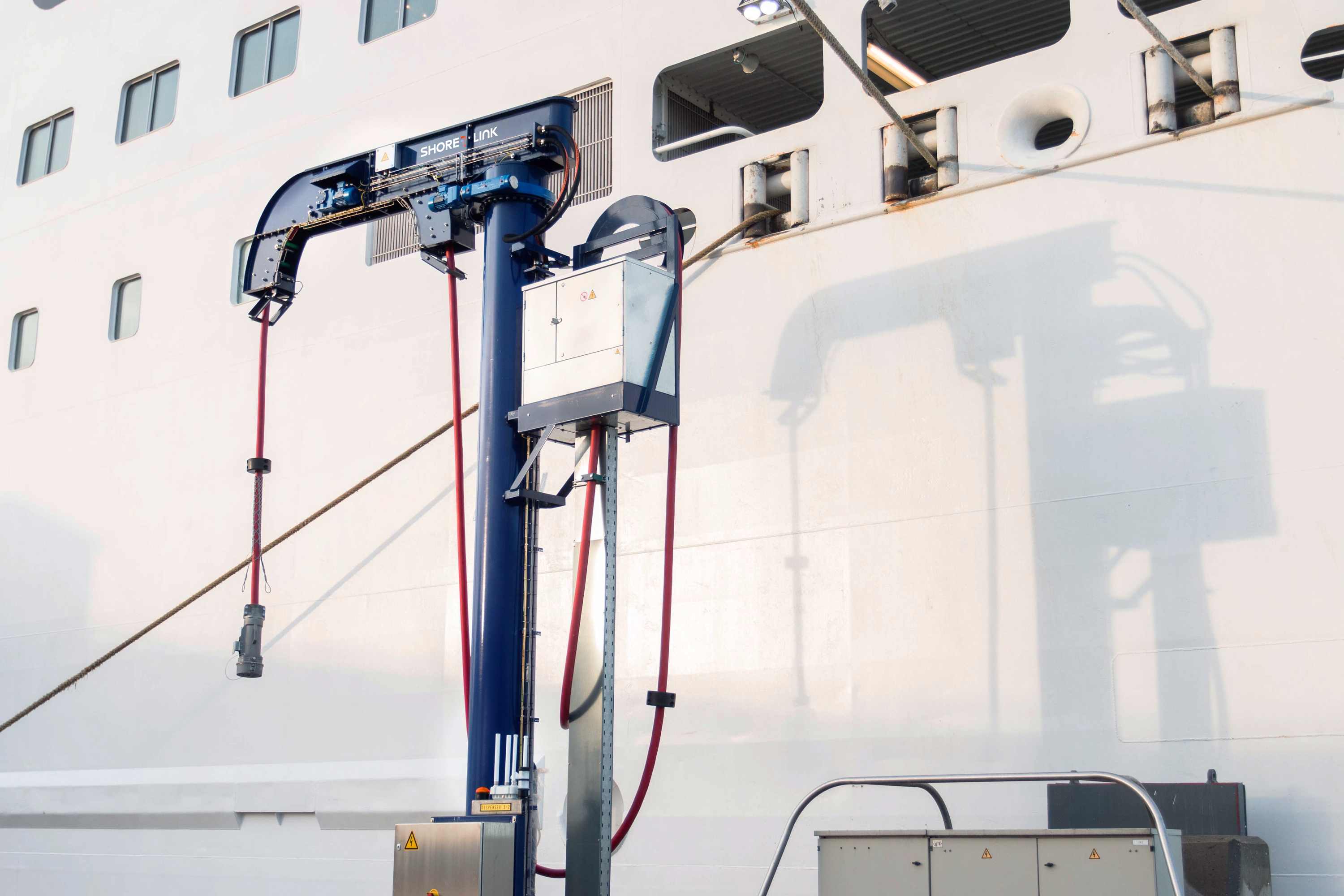

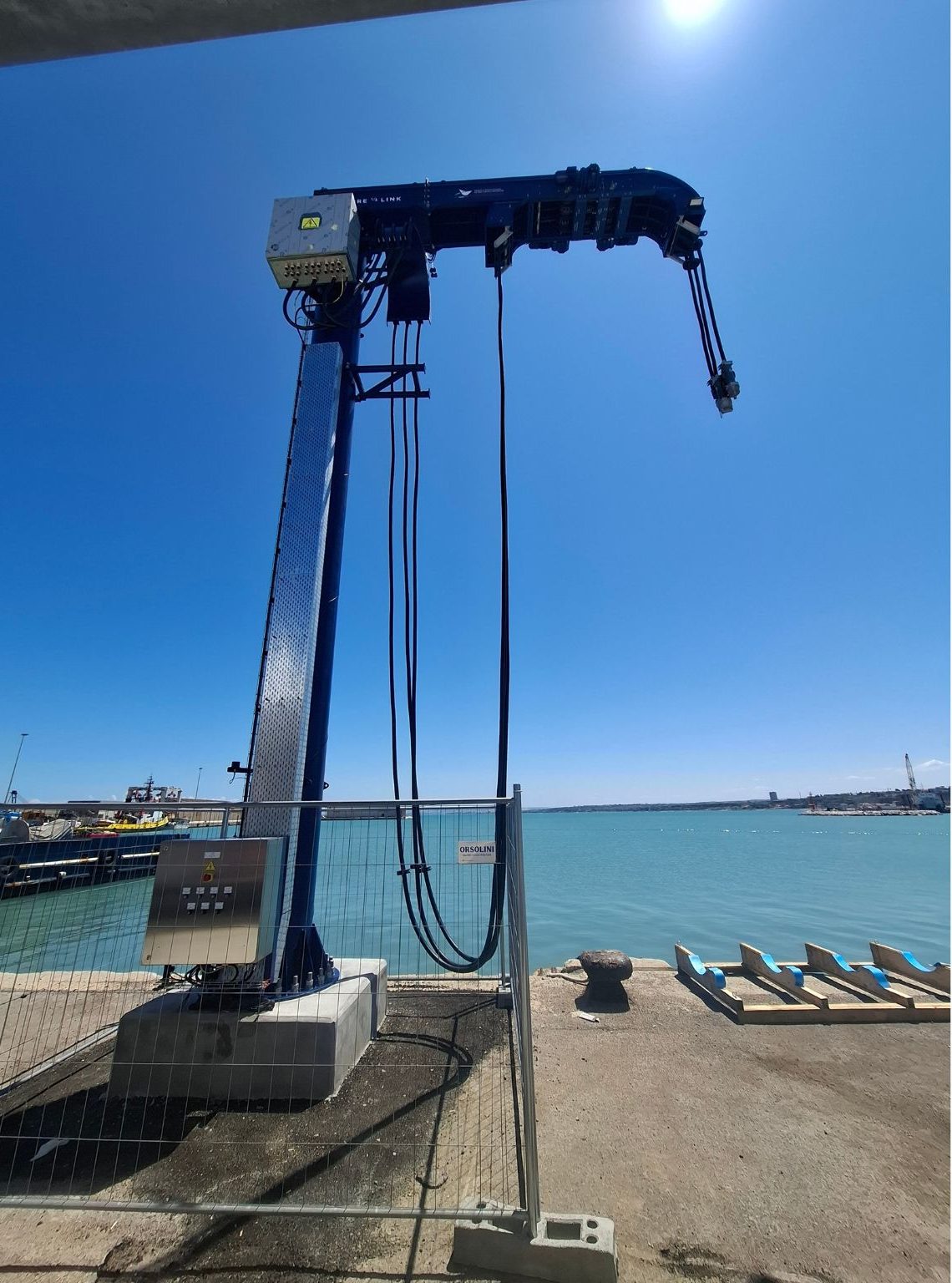

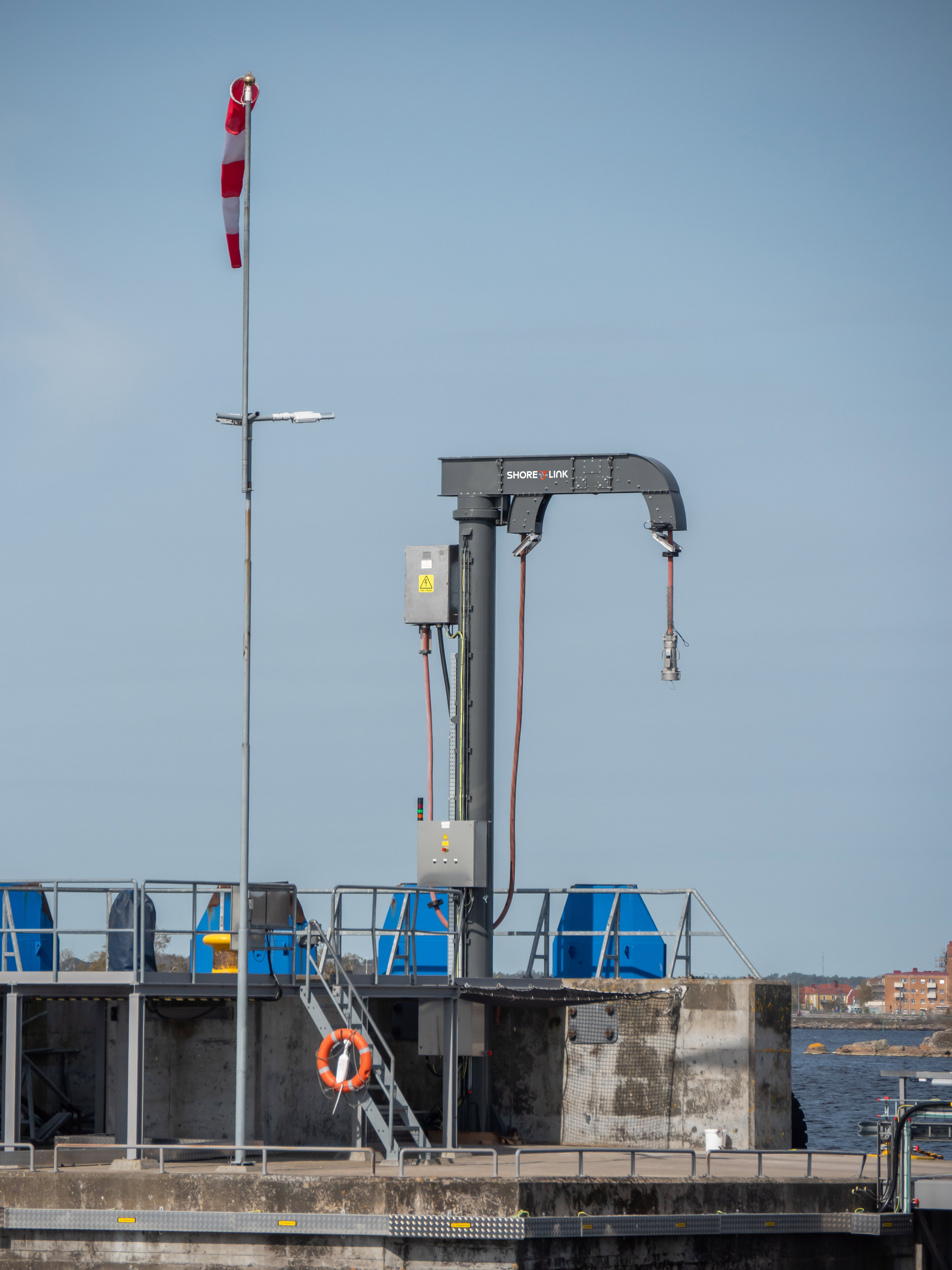

CMS is permanently mounted in place at the quay.

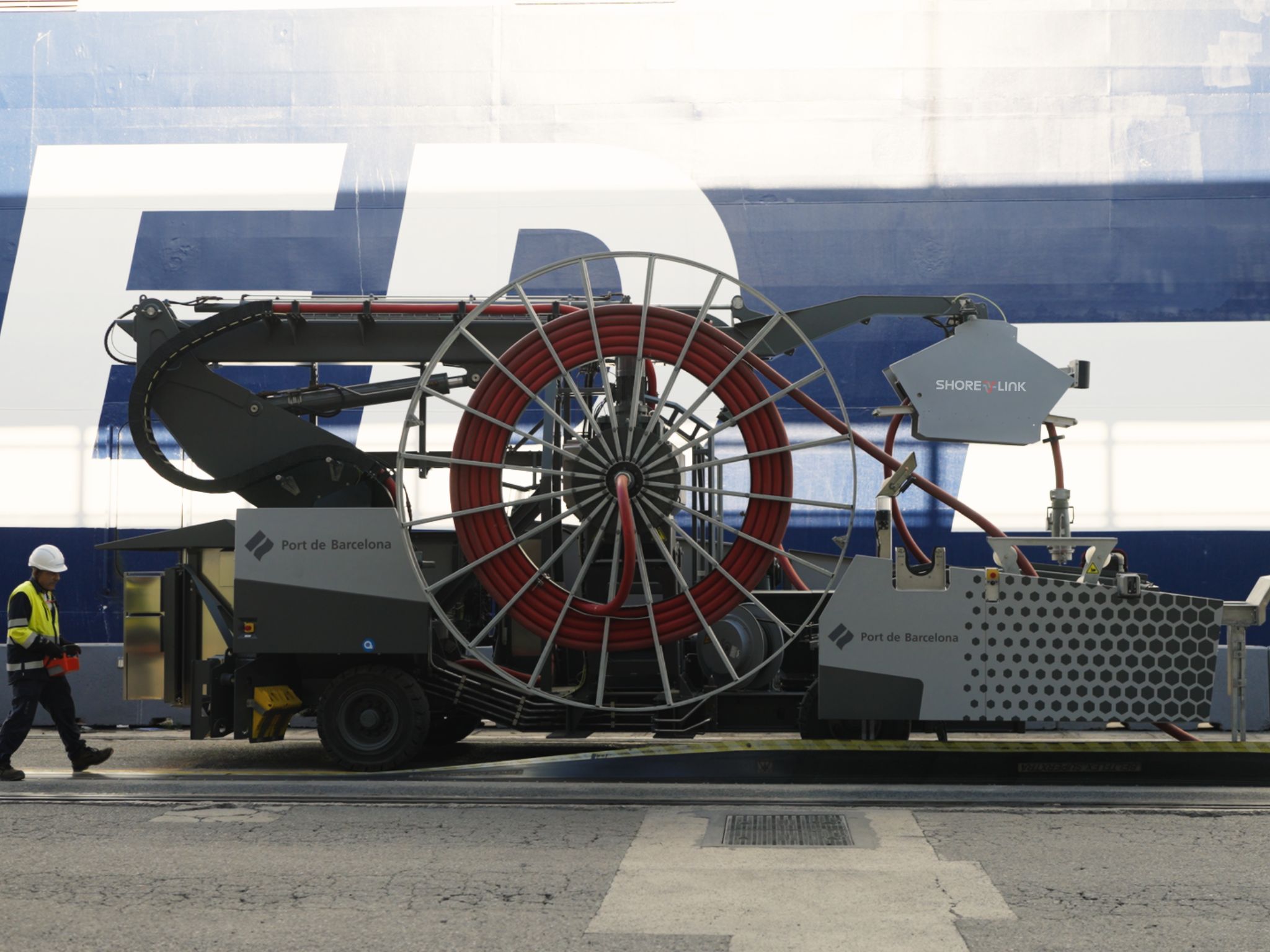

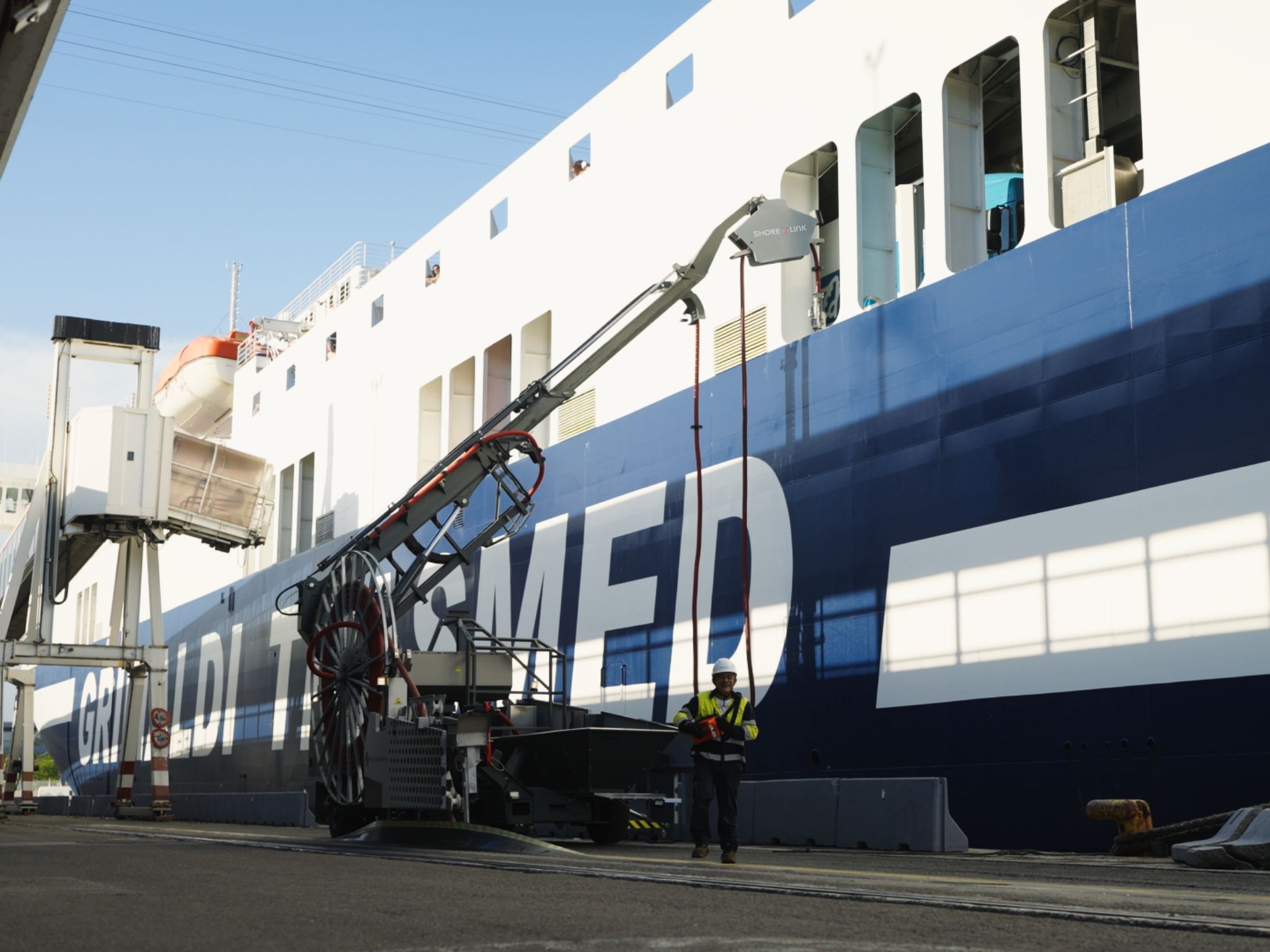

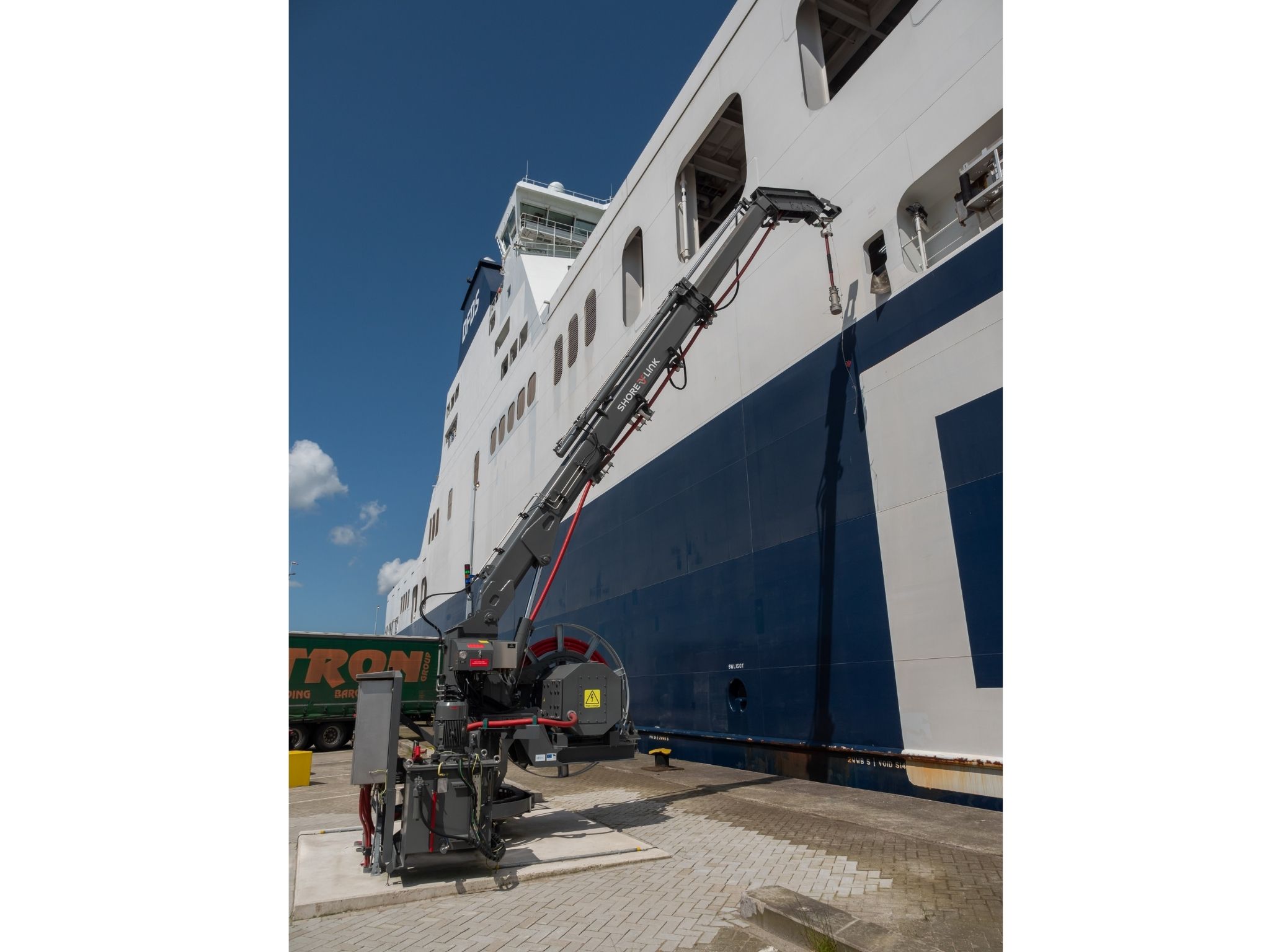

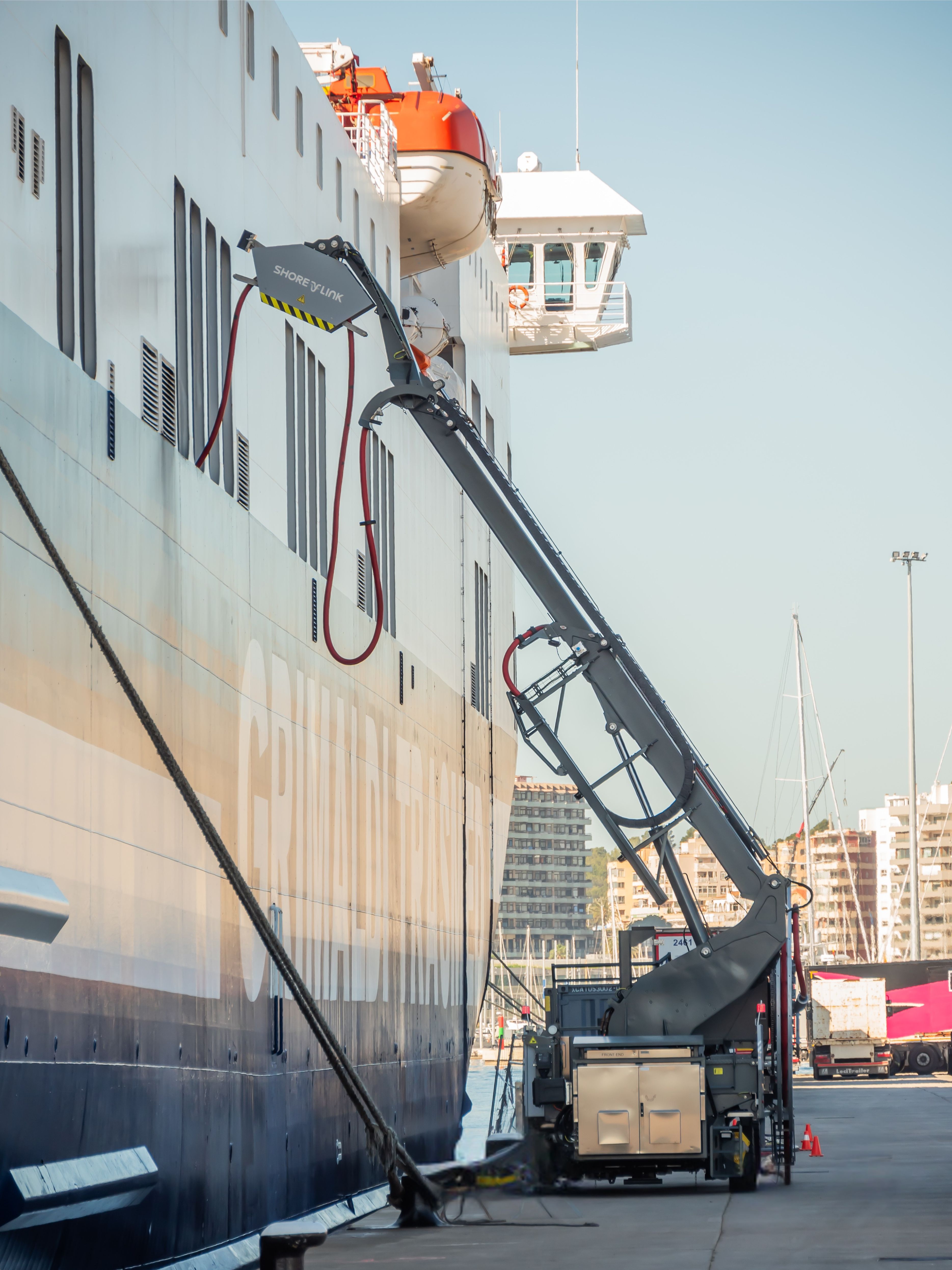

Mobile UGV (Unmanned Ground Vehicle)
CMS can be moved and stored away from the quay when not in use, providing flexibility and freeing up operational space.
Why RoRoLink
Trusted
Proven through numerous successful installations worldwide
Adaptable
Designed to suit a variety of port layouts and vessel conditions
Efficient
Operates with minimal or zero shoreside costs and rapid connection times
Flexible
Cables can be deployed either separately or together
Stable
Active Height Compensation secures uninterrupted power transfer
Powering sustainability worldwide
Want to learn more? Contact us
To reach Sales & Agents, Purchasing, Service, or Management, please use "Contact".
FAQ about RoRoLink
How can RoRoLink reach the connection point if its location differs between vessels?

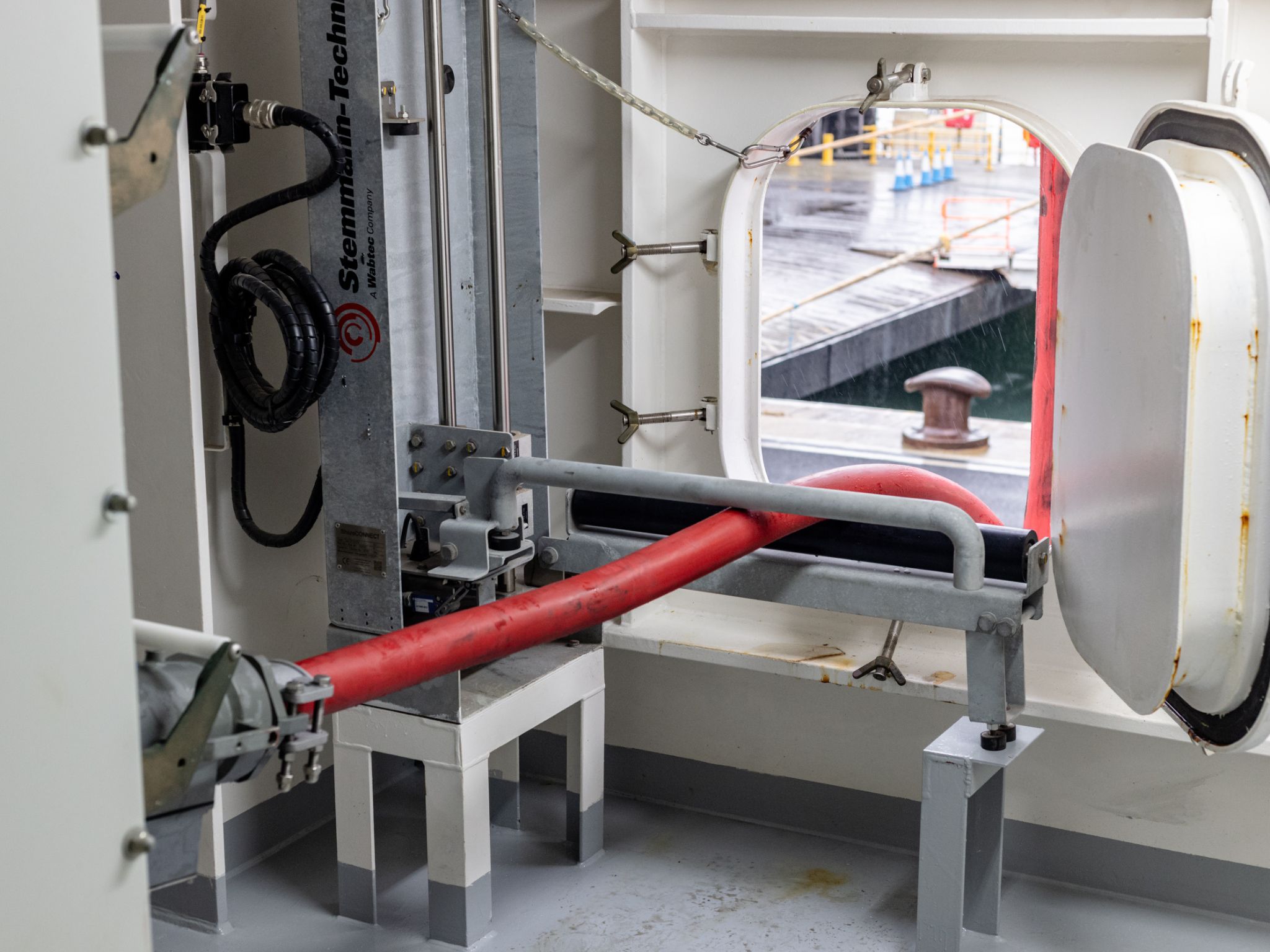

The most important part of a RoRoLink project is careful planning, ensuring that vessels with varying hatch locations can connect reliably in the future. If it is known in advance that hatch positions may differ, the minimum and maximum working ranges are first identified so the solution can be customised accordingly.
To provide additional flexibility, RoRoLink offers different configurations. The Telescopic boom extends and retracts to increase the working range, while the Reach boom provides full horizontal and vertical movement, allowing it to reach hatches at different heights and distances. For ports handling a wide variety of vessels, the Mobile version can move along the quay and park directly in front of the hatch.
Together, these options ensure a tailored solution capable of efficiently accommodating different vessel types and connection points.
Can the system handle variations in the vessel’s position at the quay?
RoRoLink includes our Active Height Compensation System (AHCS). This system constantly monitors the cable tension as the vessel rises (unloading cargo) or falls (loading), automatically paying out or reeling in cable to ensure there is zero tension on the plug, regardless of the tide or draft.
What voltage levels and power does RoRoLink support?
RoRoLink is designed according to the IEC/ISO 80005 standard for shore-to-ship connections. It supports medium-voltage (MV) systems at 6.6 kV or 11 kV, with a total power capacity of up to 6.5 MVA, as well as low-voltage (LV) systems at 400 V, 440 V, or 690 V, with a power capacity of up to 1 MVA. This ensures compliance with standard RoRo/RoPax requirements for both high- and low-voltage connections.
How quickly can RoRoLink establish a shore power connection?
The system allows a single operator to secure the connection within a few minutes, and on fixed routes where the system is pre-positioned, the process is even faster, maximizing charging and power time during short turnaround windows. For the highest efficiency, a fully automated version is also available.
Where are RoRoLink shore power installations located?
RoRoLink solutions have been successfully delivered and implemented in multiple ports worldwide. Our reference projects include locations in:

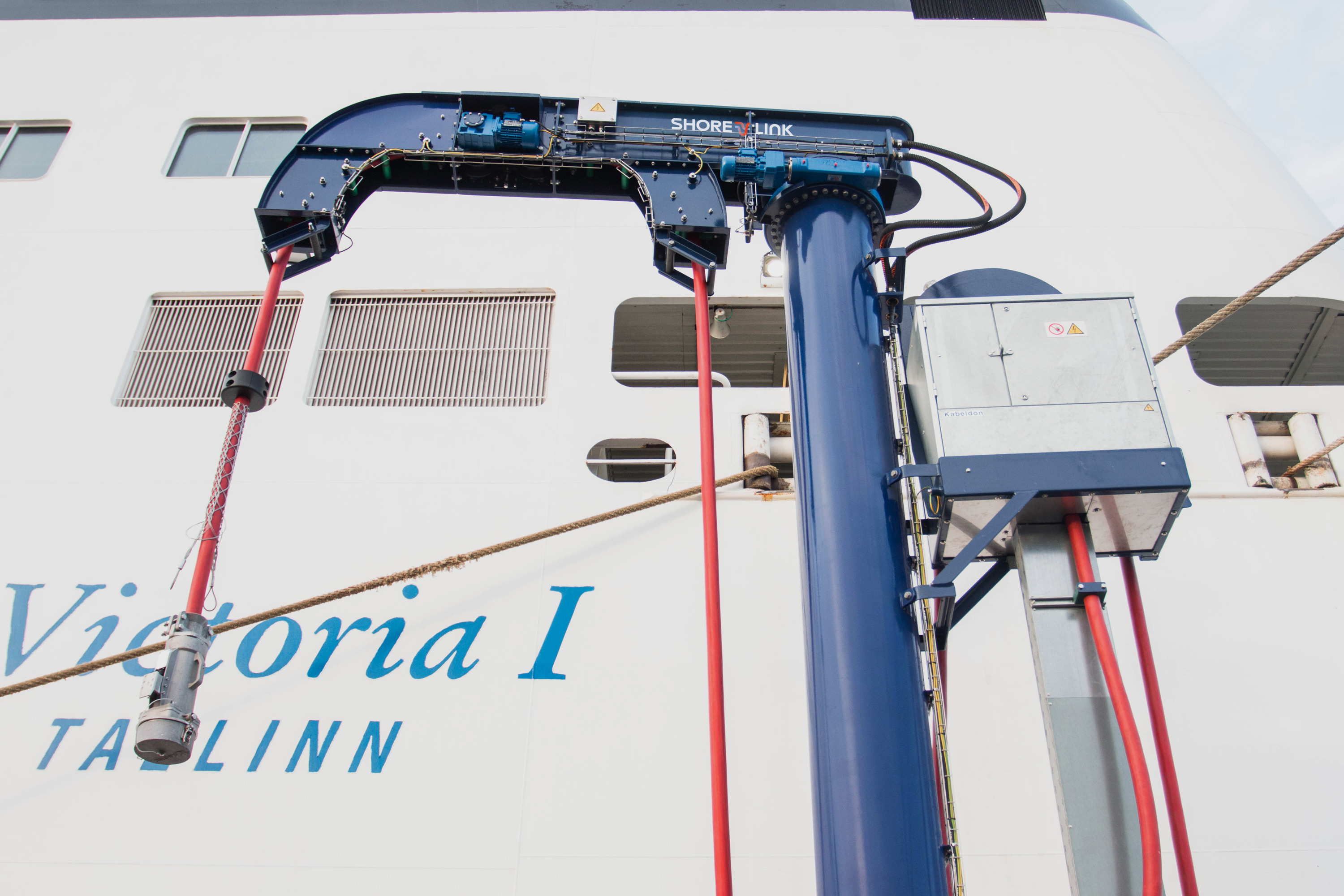

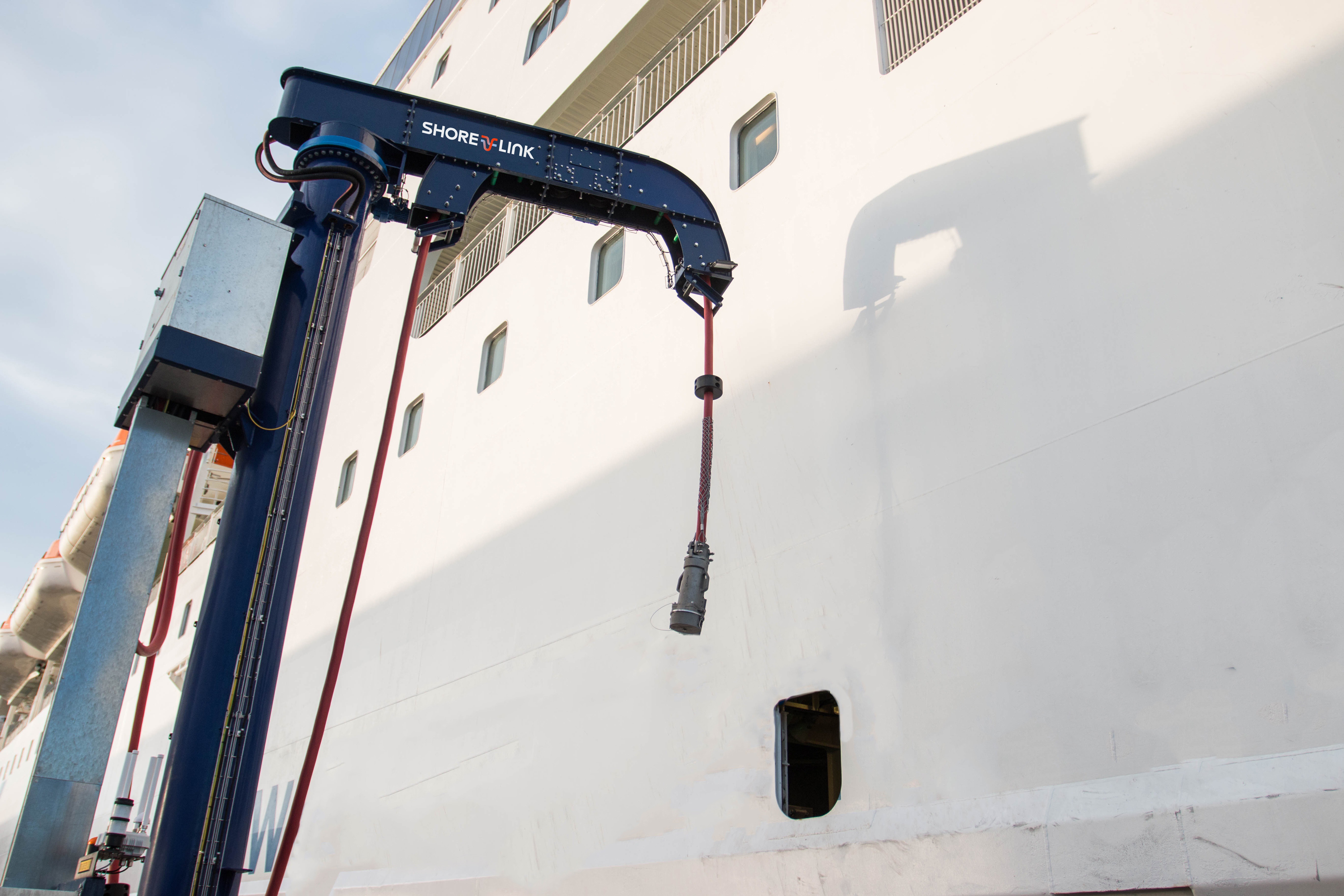

- Port of Tallinn, Estonia
- Port of Naantali, Finland
- Port of Norvik, Sweden
- Port of Karlskrona, Sweden

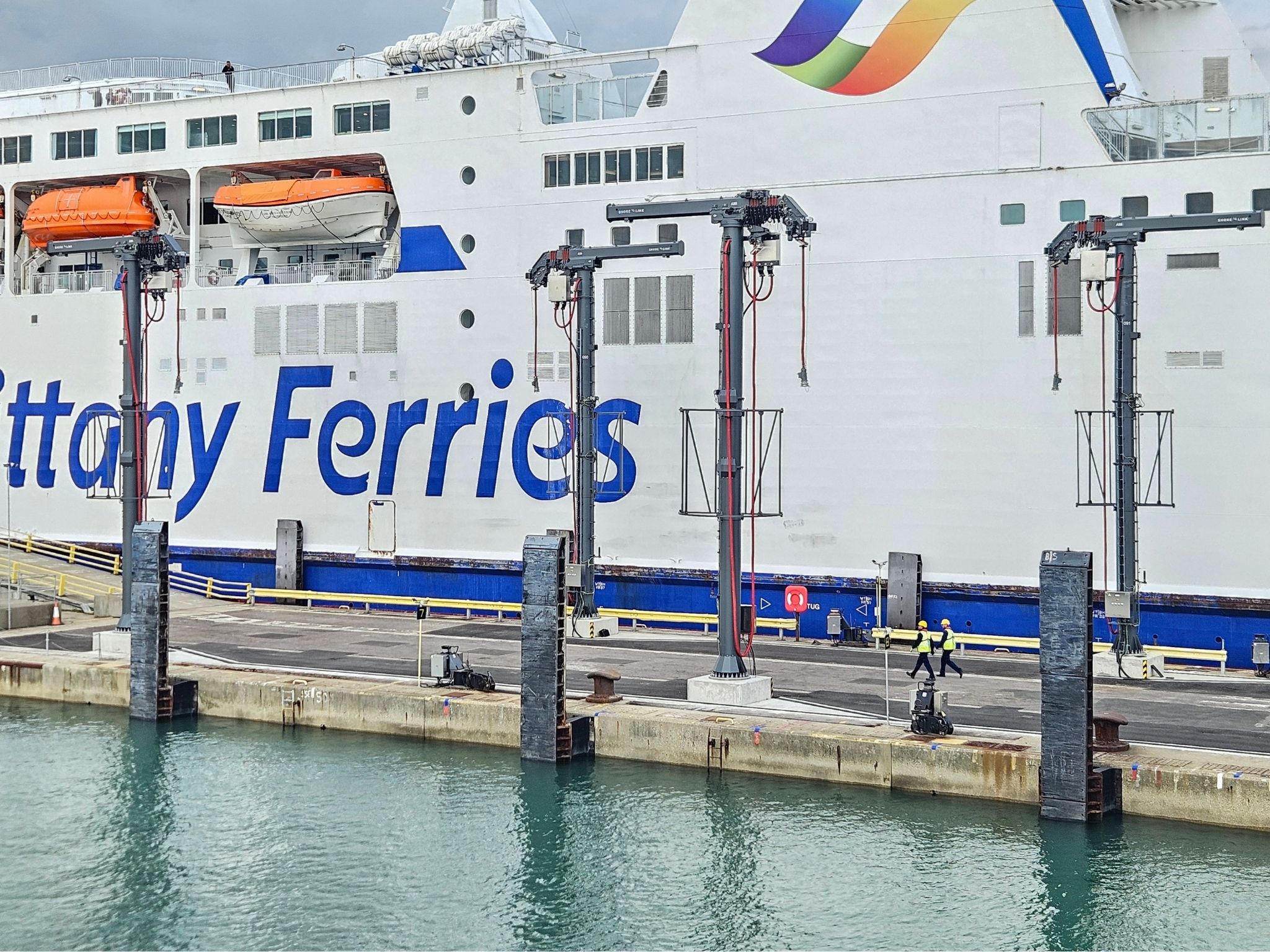

- Port of Portsmouth, UK
- Port of Barcelona, Spain
- Port of Termoli, Italy
- Port of Seyðisfjörður (Ports of Múlaþing), Iceland
- Port of Ancona, Italy
- Port of Constanta, Romania

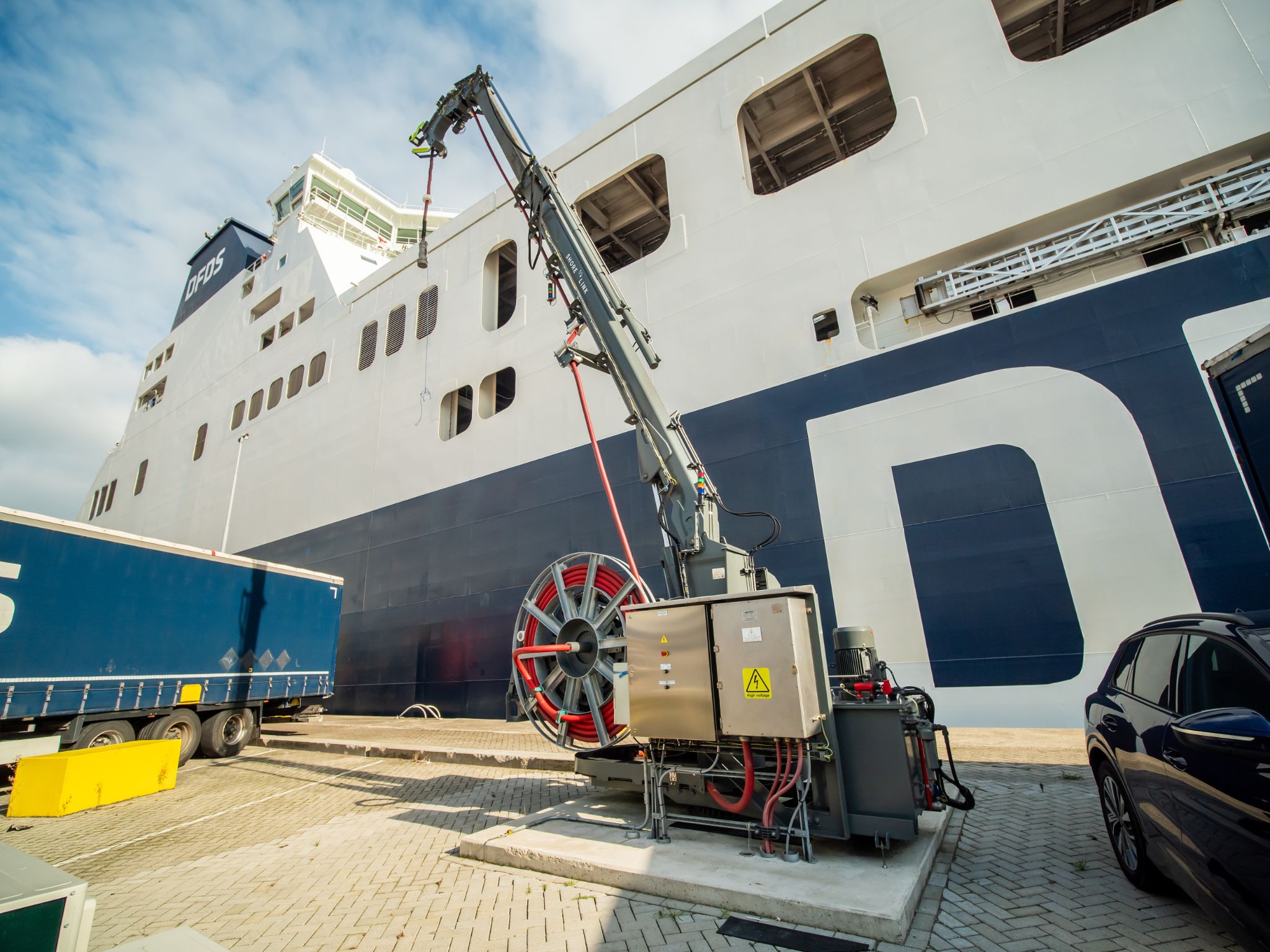

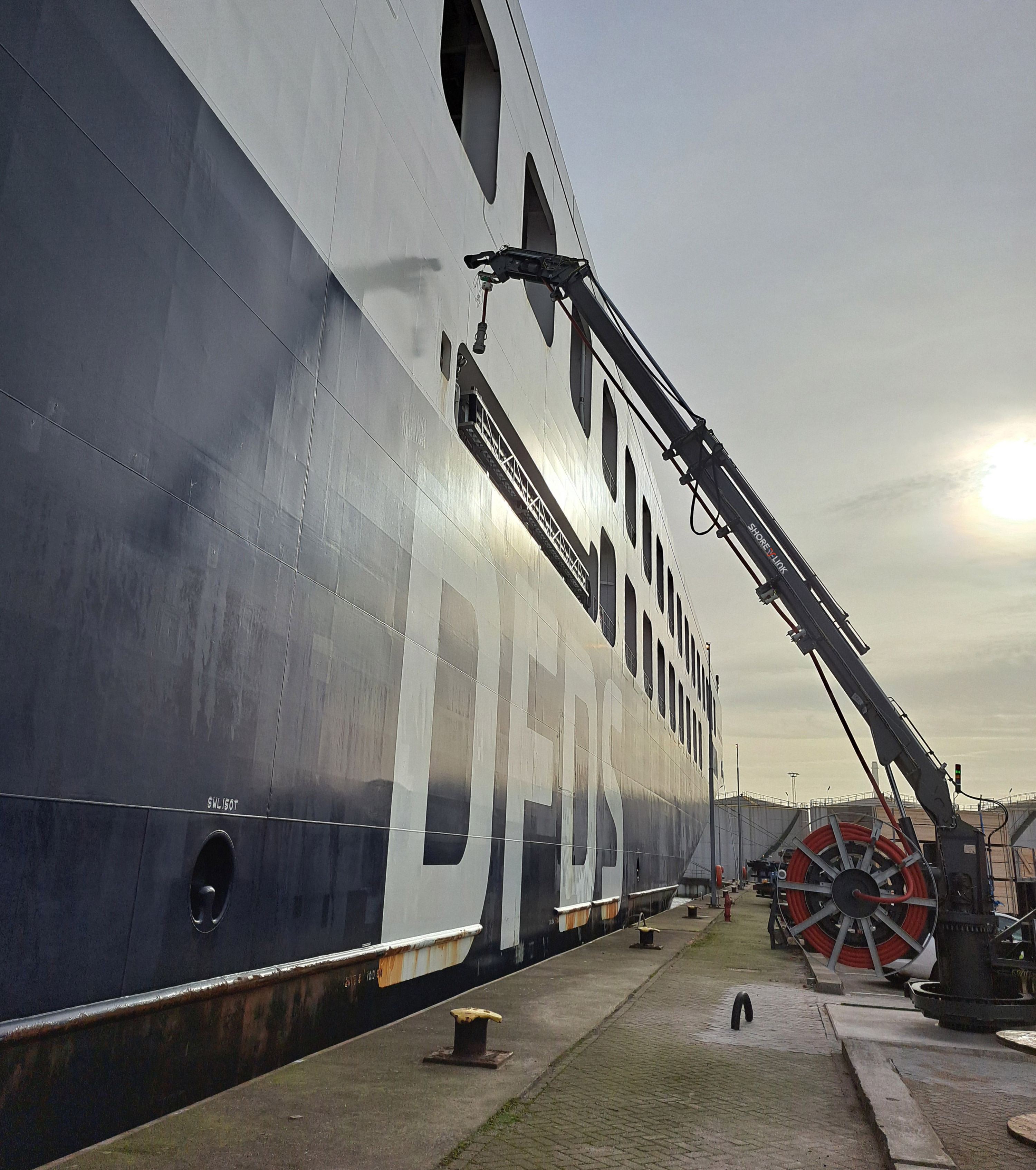

- DFDS; Port of Rotterdam, The Netherlands

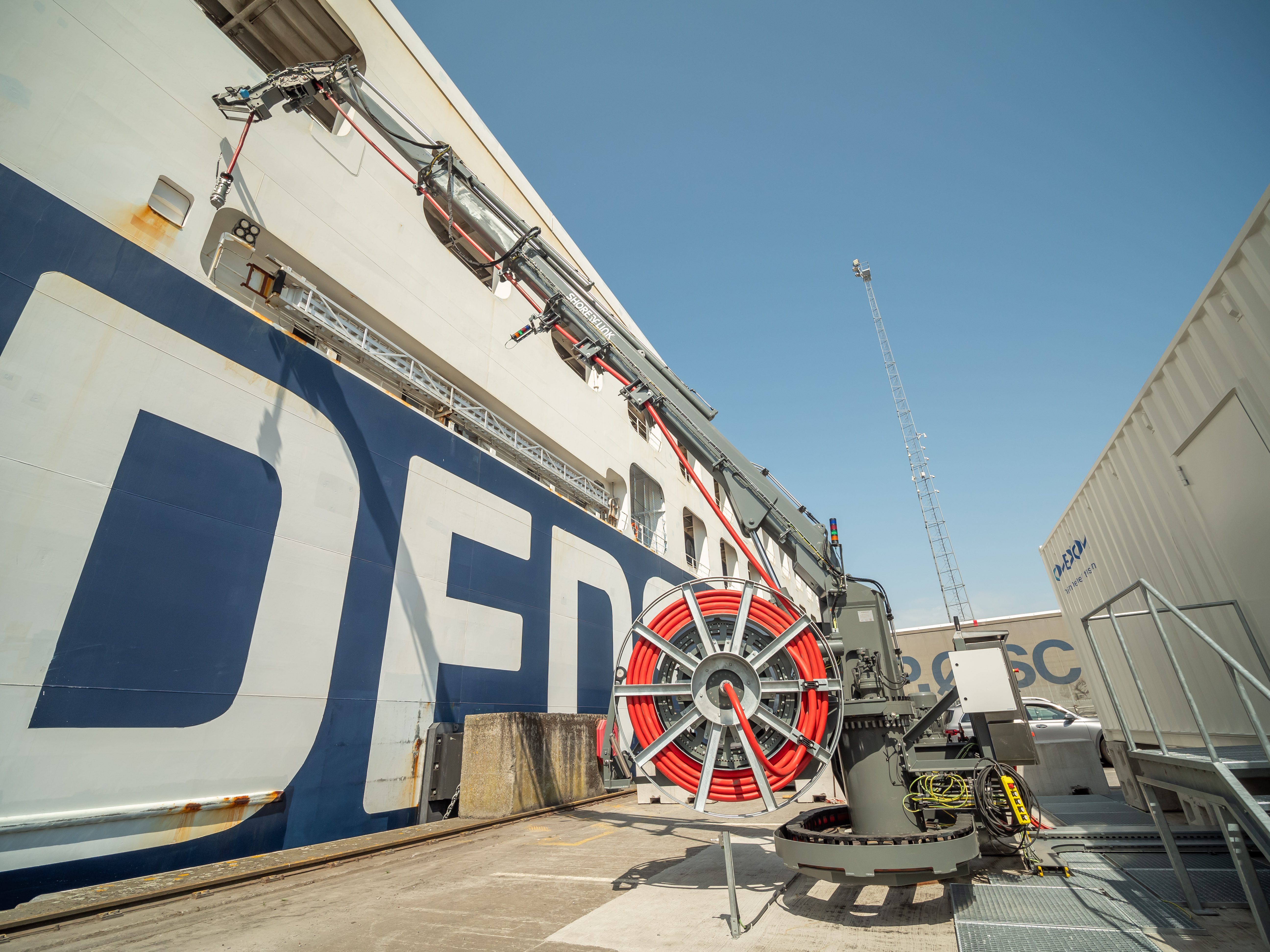

- DFDS; Port of Ghent, Belgium
We continue to expand our footprint in additional international markets.
For detailed project references or case studies, please contact our team.
